HEF4051BT,653 | NXP

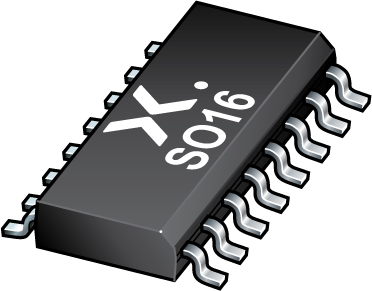

Analog Multiplexer/Demultiplexer, SOIC-16, NXP HEF4051BT,653
Unit Price (€ / pc.)
0.5593 € *
Available: 8,277 pcs.
Leadtime: On Request **
Total Price:
5.59 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5593 €
50 pcs.
0.4522 €
250 pcs.
0.3808 €
1000 pcs.
0.3332 €
2500 pcs.
0.2880 €
*incl. VAT plus shipping costs
**Subject to prior sale
8-channel analog multiplexer/demultiplexer, HEF4051BT,653, NXP
The HEF4051BT is an 8-channel Analog Multiplexer/Demultiplexer with three address inputs (S1 to S3), an active low enable input (E\), eight independent inputs/outputs (Y0 to Y7) and a common input/output (Z). The device contains eight bidirectional analog switches, each with one side connected to an independent input/output (Y0 to Y7) and the other side connected to a common input/output (Z). The analog inputs/outputs (Y0 to Y7 and Z) can swing between VDD as a positive limit and VEE as a negative limit. Unused inputs must be connected to VDD, VSS or another input. For operation as a digital multiplexer/demultiplexer, VEE is connected to VSS (typically ground).
Features
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
Technical specifications
| Output current | 10 mA | |
| Input voltage | 0.5 V | |
| Enclosure | SOIC-16 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Product type | Analog Multiplexer/Demultiplexer |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85423390 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
