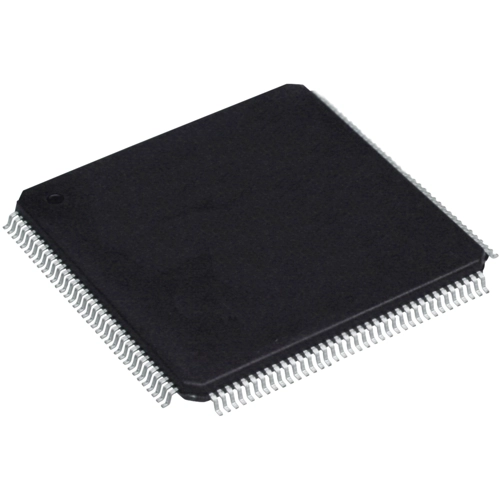

LPC2378FBD144,551 | NXP
ARM7 microcontroller, 16/32 bit, 72 MHz, LQFP-144, LPC2378FBD144,551
Unit Price (€ / pc.)
16.2911 € *
Available: 0 pcs.
Leadtime: On Request **
Mikrocontroller, LPC2378FBD144,551, NXP
The LPC2378FBD144,551 microcontroller is based on a 16-bit/32-bit ARM7TDMI-S CPU with real-time emulation that combines the microcontroller with 512 kB of embedded high-speed flash memory.
Features
- 32 kB of SRAM on the ARM local bus for high performance CPU access
- 16 KB SRAM for Ethernet interface it can also be used as general purpose SRAM
- Standard ARM test/debug interface for compatibility with existing tools
- Emulation trace module supports real-time trace
Technical specifications
| Number of I/Os | 104 | |
| Number of pins | 144 | |
| Version | Flash | |
| Enclosure | LQFP-144 | |
| Core Size | 16/32 bit | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Processor core | ARM7 | |
| Data RAM Size | 58 KB | |
| Voltage | 3-3.6 V | |
| Memory size | 512 KB | |
| Clock frequency | 72 MHz |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85423190 |
| MSL | MSL 2 |
| Original Packaging | Tray with 60 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
