2022849 | OBO Bettermann
Cable gland, M25, 29 mm, Clamping range 9 to 17 mm, IP68, silver gray, 2022849
Order No.: 06N4306
EAN: 4012195532811
MPN:
2022849
V-TEC VM25 SGR
Unit Price (€ / pc.)
2.1539 € *
Available: 4 pcs.
Leadtime: 1 Week **
Total Price:
2.15 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1539 €
10 pcs.
1.8921 €
50 pcs.
1.7255 €
100 pcs.
1.5470 €
500 pcs.
1.3804 €
*incl. VAT plus shipping costs
**Subject to prior sale

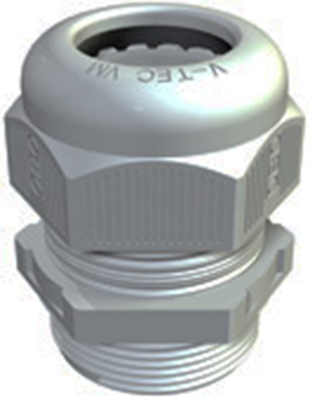

Polyamide cable glands, type OBO Bettermann V-TEC VM.
Industrial types, flame retardant to VDE 0471/IEC Part 1-2, test temperature 750 °C. Metric thread to IEC 423, robust cap nut type cable gland to meet high seal tightness requirements. Strain relief, anti-rotation feature and tightness across the entire clamping surface. Seal ring made of polychloroprene / acrylonitrile butadiene rubber. Molded sealing lip on the intermediate bush, eliminating the need for thread seal, VDE-tested to DIN EN 50262. Degree of protection IP 68 at 5.0 bar/1.0 hr; Operating temperatures: –20 to +65 °C.
Silver-gray, type 2022.

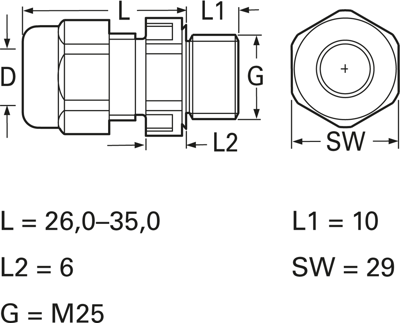

Technical attributes (type, size, cable diameter. width across flats W): 849, M 25, 9.0 to 17 mm, W 29
Technical specifications
| Version | cable gland | |
| Colour | silver gray | |
| Thread size | M25 | |
| Length | 35 mm | |
| Material | PA | |
| max. clamping range | 17 mm | |
| max. operating temperature | 65 °C | |
| min. clamping range | 9 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 29 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
