2022862 | OBO Bettermann
Cable gland, M12, 15 mm, Clamping range 3.5 to 7 mm, IP68, light gray, 2022862
Order No.: 06N4310
EAN: 4012195533177
MPN:
2022862
V-TEC VM12 LGR
Unit Price (€ / pc.)
0.9877 € *
Available: 48 pcs.
Leadtime: 2 Weeks **
Total Price:
0.99 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9877 €
10 pcs.
0.8687 €
50 pcs.
0.7854 €
100 pcs.
0.7140 €
500 pcs.
0.6307 €
*incl. VAT plus shipping costs
**Subject to prior sale

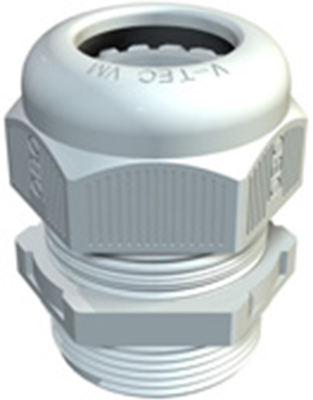

Polyamide cable glands, type OBO Bettermann V-TEC VM.
Industrial types, flame retardant to VDE 0471/IEC Part 1-2, test temperature 750 °C. Metric thread to IEC 423, robust cap nut type cable gland to meet high seal tightness requirements. Strain relief, anti-rotation feature and tightness across the entire clamping surface. Seal ring made of polychloroprene / acrylonitrile butadiene rubber. Molded sealing lip on the intermediate bush, eliminating the need for thread seal, VDE-tested to DIN EN 50262. Degree of protection IP 68 at 5.0 bar/1.0 hr; Operating temperatures: –20 to +65 °C.
Light-gray, type 2022.

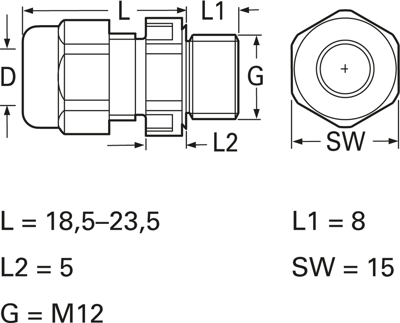

Technical attributes (type, size, cable diameter. width across flats W): 862, M 12, 3.5 to 7.0 mm, W 15
Technical specifications
| Ausführung | Kabelverschraubung | |
| Farbe | lichtgrau | |
| Gewindegröße | M12 | |
| Länge | 23.5 mm | |
| Material | PA | |
| max. Klemmbereich | 7 mm | |
| max. Temperatur | 65 °C | |
| min. Klemmbereich | 3.5 mm | |
| min. Temperatur | -20 °C | |
| Schlüsselweite | 15 mm | |
| Schutzart (IP) | IP68 |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
