2022945 | OBO Bettermann
Cable gland, M16, 20 mm, Clamping range 4.5 to 10 mm, IP68, light gray, 2022945
Order No.: 46P1183
EAN: 4012195004141
MPN:
2022945
V-TEC VM L16 LGR
Unit Price (€ / pc.)
3.4034 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

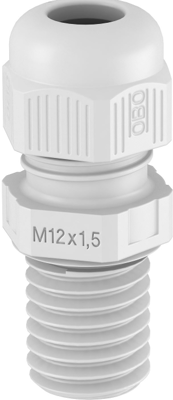

Cable gland, 2022945, OBO Bettermann
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Technical specifications
| Version | cable gland | |
| Colour | light gray | |
| Thread size | M16 | |
| Length | 29.5 mm | |
| Material | PA | |
| max. clamping range | 10 mm | |
| max. operating temperature | 65 °C | |
| min. clamping range | 4.5 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 20 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
