2022991 | OBO Bettermann
Cable gland, M32, 36 mm, Clamping range 15 to 21 mm, IP68, black, 2022991
Order No.: 46P1217
EAN: 4012195812197
MPN:
2022991
V-TEC VM LL32 SW
Unit Price (€ / pc.)
11.6263 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Cable gland, 2022991, OBO Bettermann
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

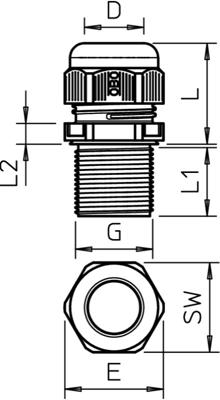

Technical specifications
| Version | cable gland | |
| Colour | black | |
| Thread size | M32 | |
| Length | 40 mm | |
| Material | PA | |
| max. clamping range | 21 mm | |
| max. operating temperature | 65 °C | |
| min. clamping range | 15 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 36 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
