2022993 | OBO Bettermann

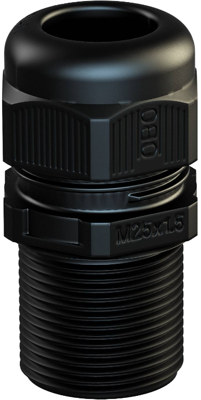

Cable gland, M40, 44 mm, Clamping range 16 to 28 mm, IP68, black, 2022993
Order No.: 46P1218
EAN: 4012195812203
MPN:
2022993
V-TEC VM LL40 SW
Unit Price (€ / pc.)
27.3581 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Cable gland, 2022993, OBO Bettermann
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

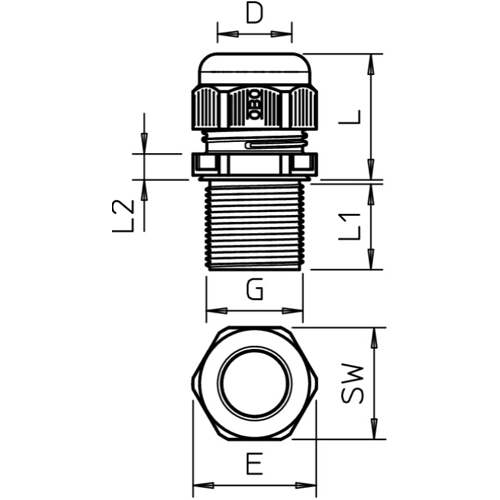

Technical specifications
| Version | cable gland | |
| Colour | black | |
| Thread size | M40 | |
| Length | 46 mm | |
| Material | PA | |
| max. clamping range | 28 mm | |
| max. operating temperature | 65 °C | |
| min. clamping range | 16 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 44 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
