2024209 | OBO Bettermann
Cable gland, PG13, 24 mm, Clamping range 5 to 12 mm, IP68, silver gray, 2024209
Order No.: 46P1632
EAN: 4012195843078
MPN:
2024209
V-TEC L PG13 SGR
Unit Price (€ / pc.)
5.2955 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Cable gland, 2024209, OBO Bettermann
Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between -20°C and +65°C.

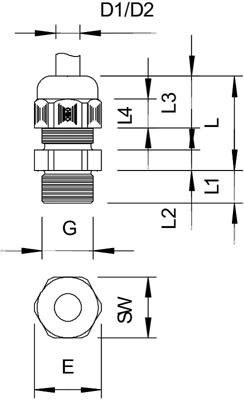

Technical specifications
| Ausführung | Kabelverschraubung | |
| Farbe | silbergrau | |
| Gewindegröße | PG13 | |
| Länge | 30 mm | |
| Material | PA | |
| max. Klemmbereich | 12 mm | |
| max. Temperatur | 65 °C | |
| min. Klemmbereich | 5 mm | |
| min. Temperatur | -20 °C | |
| Schlüsselweite | 24 mm | |
| Schutzart (IP) | IP68 |
Download
Logistics
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
