2024233 | OBO Bettermann
Cable gland, PG29, 42 mm, Clamping range 14 to 25 mm, IP68, silver gray, 2024233
Order No.: 46P1635
EAN: 4012195843252
MPN:
2024233
V-TEC L PG29 SGR
Unit Price (€ / pc.)
16.5767 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

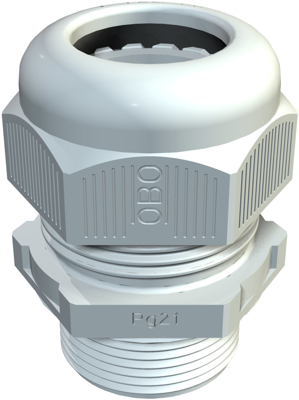

Cable gland, 2024233, OBO Bettermann
Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between -20°C and +65°C.

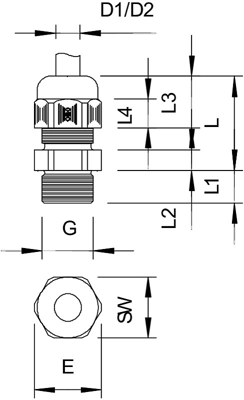

Technical specifications
| Version | cable gland | |
| Colour | silver gray | |
| Thread size | PG29 | |
| Length | 43 mm | |
| Material | PA | |
| max. clamping range | 25 mm | |
| max. operating temperature | 65 °C | |
| min. clamping range | 14 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 42 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
