2024922 | OBO Bettermann

Cable gland, separable, M25, 31/35 mm, Clamping range 14 to 18 mm, IP67, light gray, 2024922

Order No.: 46P1608
EAN: 4012196334551
MPN:
2024922
V-TEC TB25 14-18

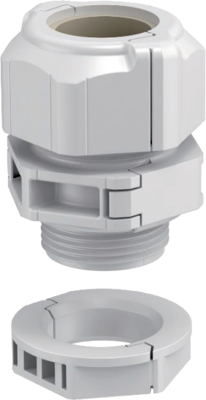

2024922 OBO Bettermann Cable Glands Image 1
2024922 OBO Bettermann Cable Glands Image 2
2024922 OBO Bettermann Cable Glands Image 3
Image may differ
Unit Price (€ / pc.)
37.6159 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
188.08 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5 pcs.
37.6159 €

Divisible cable gland, 2024922, OBO Bettermann

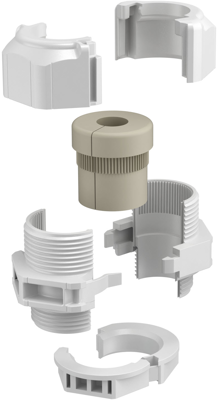

The splittable cable gland V-TEC TB ensures - like all V-TEC glands - a secure sealing of the cable. The installation of pre-terminated cables or function cables, for example, is easy and quick, thanks to the splitting of the cable gland. The V-TEC TB is also unbeatable when refitting an existing installation and as a "repair gland". There is no need to disassemble pre-mounted cables, it can be installed without interrupting the production process.

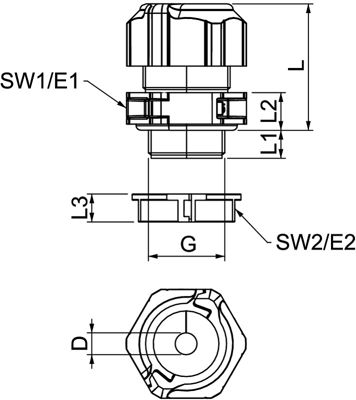

Technical specifications
Ausführung Kabelverschraubung, teilbar
Farbe lichtgrau
Gewindegröße M25
Länge 40 mm
Material PC
max. Klemmbereich 18 mm
max. Temperatur 80 °C
min. Klemmbereich 14 mm
min. Temperatur -20 °C
Schlüsselweite 31/35 mm
Schutzart (IP) IP67
Logistics
Zolltarifnummer 39269097
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
