2024958 | OBO Bettermann
Cable gland, M20, 27/30 mm, IP67, light gray, 2024958
Order No.: 46P1620
EAN: 4012196536856
MPN:
2024958
V-TEC TB20 6x4
Unit Price (€ / pc.)
47.5762 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

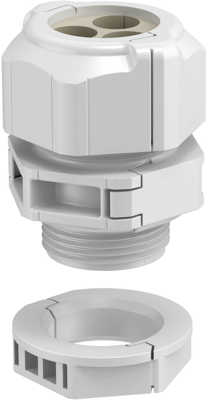

Separable cable gland, 2024958, OBO Bettermann

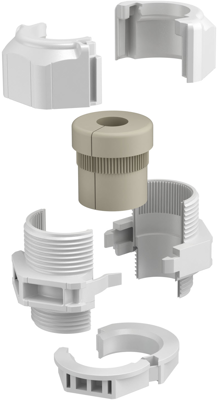

The splittable cable gland V-TEC TB ensures - like all V-TEC glands - a secure sealing of the cable. The installation of pre-terminated cables or function cables, for example, is easy and quick, thanks to the splitting of the cable gland. The V-TEC TB is also unbeatable when refitting an existing installation and as a "repair gland". There is no need to disassemble pre-mounted cables, it can be installed without interrupting the production process.
Technical specifications
| Version | teilbar | |
| Colour | lichtgrau | |
| Thread size | M20 | |
| Length | 30.5 mm | |
| Material | PC | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -20 °C | |
| Product type | Kabelverschraubung | |
| spanner size | 27/30 mm | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
