2032380 | OBO Bettermann

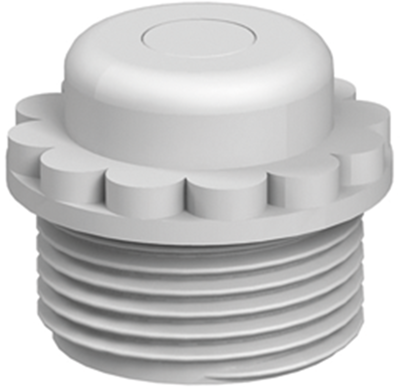

Locking screw, M16, 16 mm, IP54, light gray, 2032380
Order No.: 06N4276
EAN: 4012195481515
MPN:
2032380
90 M16 GE
Unit Price (€ / pc.)
0.3213 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Screw-on nipples for cable junction boxes, type OBO Bettermann 90 M/2032.
Twist seal for screwing into metric threads to IEC 423, self-sealing cone at the thread end eliminates the need for a thread ring seal. Degree of protection IP 54 can be achieved if the seal is carefully installed; Material: polyethylene. Color: light gray, RAL 7035. Versions: with hole acting as open cable entry or without hole but punch-out membrane and pre-formed hole D which is initially closed.

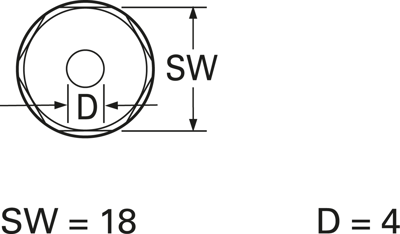

Technical attributes (type, size, width across flats W, hole diameter D, version): 380, M16, W 18, D 4.0 mm, with membrane
Technical specifications
| Version | locking screw | |
| Colour | light gray | |
| Thread size | M16 | |
| Length | 20 mm | |
| Material | PE | |
| spanner size | 16 mm | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
