2082578 | OBO Bettermann
Cable gland, PG21, 28/30 mm, Clamping range 10 to 20.5 mm, IP65, silver, 2082578
Order No.: 46P1133
EAN: 4012195187752
MPN:
2082578
162 MS PG21
Unit Price (€ / pc.)
5.9024 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

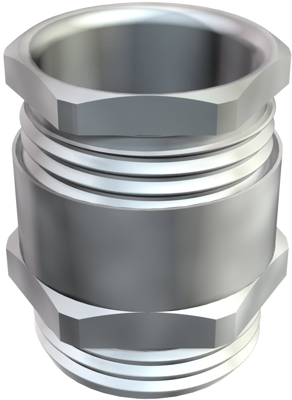

Cable gland, 162 MS PG21, OBO Bettermann
Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with Pg connection thread to DIN 40430. Pressure rings made of electrogalvanised and transparently passivated steel with NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.

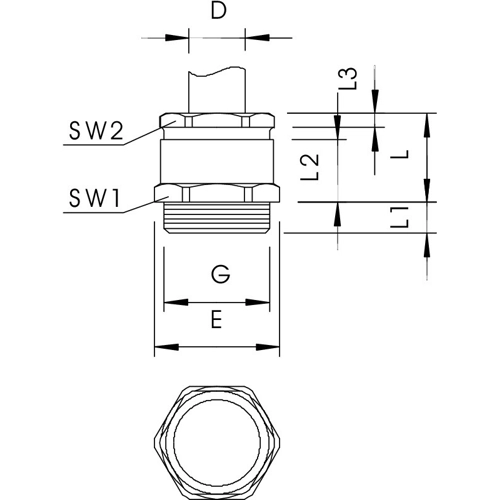

Technical specifications
| Ausführung | Kabelverschraubung | |
| Farbe | silber | |
| Gewindegröße | PG21 | |
| Länge | 22 mm | |
| Material | Messing, vernickelt | |
| max. Klemmbereich | 20.5 mm | |
| min. Klemmbereich | 10 mm | |
| Schlüsselweite | 28/30 mm | |
| Schutzart (IP) | IP65 |
Download
Logistics
| Zolltarifnummer | 74153900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
