2082594 | OBO Bettermann
Cable gland, PG29, 37/40 mm, Clamping range 18 to 29 mm, IP54, silver, 2082594
Order No.: 46P1134
EAN: 4012195187813
MPN:
2082594
162 MS PG29
Unit Price (€ / pc.)
10.9004 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

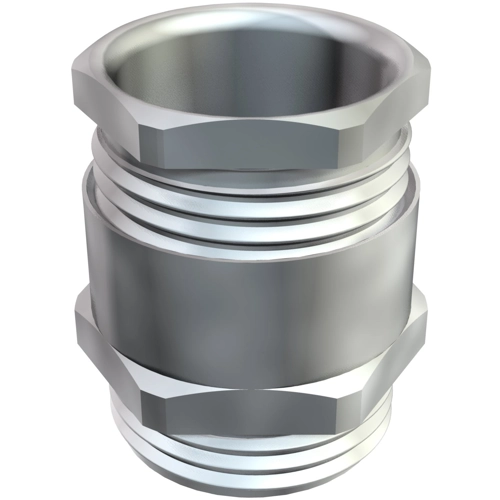

Cable gland, 162 MS PG29, OBO Bettermann
Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with Pg connection thread to DIN 40430. Pressure rings made of electrogalvanised and transparently passivated steel with NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.
Technical specifications
| Version | cable gland | |
| Colour | silver | |
| Thread size | PG29 | |
| Length | 24 mm | |
| Material | brass, nickel-plated | |
| max. clamping range | 29 mm | |
| min. clamping range | 18 mm | |
| spanner size | 37/40 mm | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Customs tariff number | 74153900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
