2085771 | OBO Bettermann

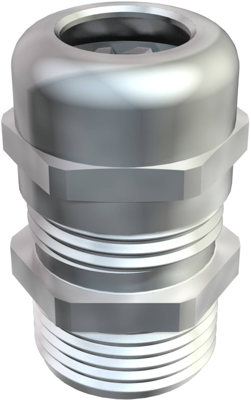

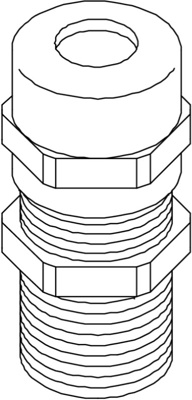

Cable gland, PG21, 30 mm, Clamping range 9 to 18 mm, IP68, silver, 2085771
Order No.: 46P1166
EAN: 4012195841036
MPN:
2085771
V-TEC L PG21 MS
Unit Price (€ / pc.)
24.2403 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Cable gland, 2085771, OBO Bettermann
Cable gland of cap-nut design with large sealing area, strain relief and torsion protection for high sealing demands with long Pg connection. Thread to DIN 40430, for thicker housing wall thicknesses in connection with locknut.
Features
- Polyamide terminal insert
- Sealing ring of chloroprene/nitrile rubber
- O ring pre-mounted on connection thread
- With long connection thread
Technical specifications
| Version | cable gland | |
| Colour | silver | |
| Thread size | PG21 | |
| Length | 33 mm | |
| Material | brass, nickel-plated | |
| max. clamping range | 18 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 9 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 30 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Customs tariff number | 74153900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
