1104411 | OBO Bettermann

DIN rail, perforated, 35 x 18 mm, W 600 mm, steel, strip galvanized, 1104411

Order No.: 46P2197
EAN: 4012195486190
MPN:
1104411
CMS3518P0600FS
OBO Bettermann

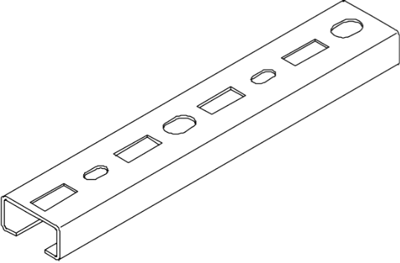

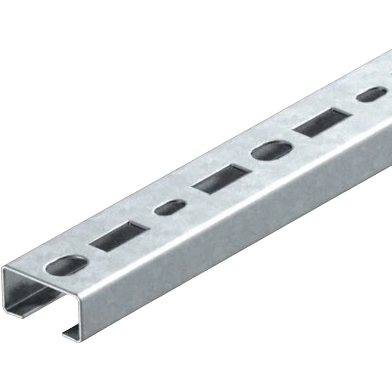

1104411 OBO Bettermann DIN Rails Image 1

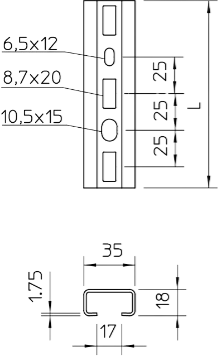

1104411 OBO Bettermann DIN Rails Image 2

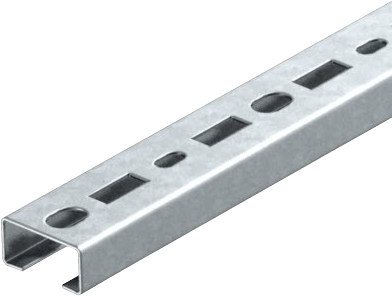

1104411 OBO Bettermann DIN Rails Image 3
Image may differ
Print
Key Specification:
Version profile rail
Width 600 mm
Height 35 mm
Depth 18 mm
Material steel, strip galvanized
Show 18 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
18.0642 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Add to Cart
Total Price:
18.06 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
18.0642 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Profile rail, 1104411, OBO Bettermann

The 1104411 is a central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.
Technical specifications
Version profile rail
Width 600 mm
Height 35 mm
Material steel, strip galvanized
Depth 18 mm
Show similar products 0
Logistics
Customs tariff number 72166110
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
