2011324 | OBO Bettermann
Die-cast aluminum enclosure, (L x W x H) 175 x 80 x 57 mm, silver gray (RAL 7001), IP66, 2011324
Order No.: 46P1925
EAN: 4012196622603
MPN:
2011324
Mx 170805 SGR
Unit Price (€ / pc.)
52.1339 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

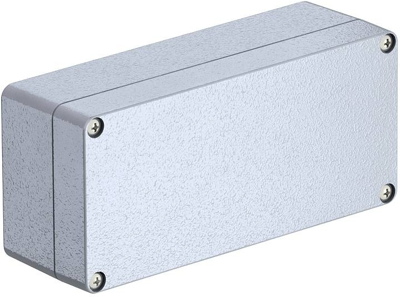

Aluminium empty housing, 2011324, OBO Bettermann
Robust aluminium empty housing for mechanical engineering and automation technology. It is therefore also best suited for applications in industry, ports and ship building, as well as in the agricultural sector. The product protect the electrical installation against high-grade strains. It withstands both extreme cold and heat as well as vandalism and impact on roads, railways or in tunnels. With an IP66 protection class, it is optimally protected against the intrusion of dust and water. The aluminum housing is powder-coated (RAL 7001) and is supplied in each case with cover, stainless steel screws, gasket and 2 or 4 grounding screws.

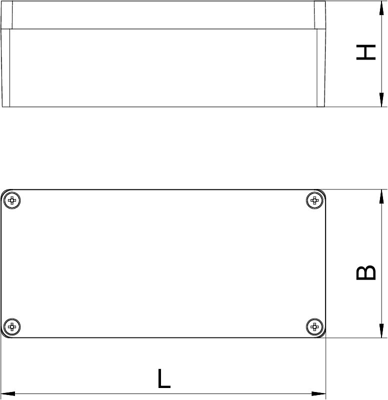

Technical specifications
| Width | 80 mm | |
| Colour | silver gray | |
| Height | 57 mm | |
| Length | 175 mm | |
| Material | die-cast aluminum | |
| RAL number | 7001 | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
