2054458 | OBO Bettermann
Socket terminal, 1 pole, 0.2-2.5 mm², clamping points: 5, transparent, clamp connection, 24 A, 2054458
Order No.: 46P1988
EAN: 4012196334667
MPN:
2054458
61 525 FL
Unit Price (€ / pc.)
1.0115 € *
Available: 30 pcs.
Leadtime: 2 Weeks **
Total Price:
1.01 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0115 €
10 pcs.
0.9282 €
50 pcs.
0.8568 €
100 pcs.
0.8092 €
500 pcs.
0.7616 €
*incl. VAT plus shipping costs
**Subject to prior sale

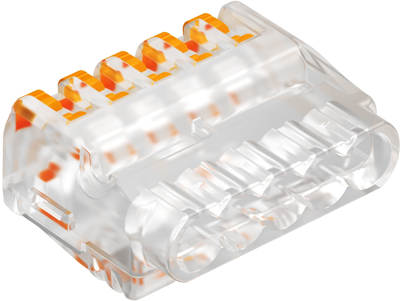

Universal plug-in terminal, 2054458, OBO Bettermann
Screwless terminal to connect electrical conductors. The type of conductor can either be flexible, multi-wire or rigid. If rigid conductors are used, an opening of the release lever is not necessary. The conductor can be plugged into the terminal directly.
Technical specifications
| Anschluss | Klemmanschluss | |
| Anzahl der Klemmstellen | 5 | |
| Ausführung | Steckklemme | |
| AWG-Leiterquerschnitt | AWG 24-12 | |
| Farbe | transparent | |
| Leiterquerschnitt | 0,2-2,5 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 1-polig |
Download
Logistics
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
