517.075.003.040.010 | ODU
Socket header, 40 pole, pitch 2.54 mm, straight, gray, 517.075.003.040.010
Unit Price (€ / pc.)
9.4724 € *
Available: 195 pcs.
Leadtime: 5 Weeks **
Total Price:
9.47 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4724 €
10 pcs.
8.7108 €
50 pcs.
7.9254 €
100 pcs.
7.1400 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable-to-board female connectors DIN 41651, series ODU FLAKAFIX, type ODU 517.075.003.
Compliant with DIN EN 60603-13 (DIN 41651). for insertion on 0.64 x 0.64 pin headers with 2.54 mm grid, and for press-fit installation on standard cables with 1.27 mm partition and 0.08 to 0.14 mm² cross-sections; Contact carrier: PBT glass fiber-reinforced. Combustibility to UL 94 V-0. Color: gray. Contacts: copper alloy. Test voltage: 1000 VRMS. Current carrying capacity at conductor cross-sections 0.08 mm² max. 1.0 A, 0.14 mm² max. 1.5 A. Operating temperatures: - 55 °C to +125 °C.

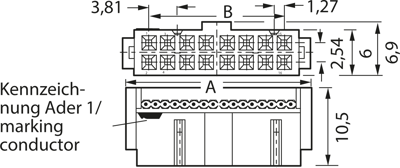

Technical attributes (number of poles, dimensions A/B): 040, 40-pole, A 55.4/B 48.26 mm
Technical specifications
| Anschluss | Schneidklemmanschluss | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | grau | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | vergoldet | |
| Nennstrom | 1.5 A | |
| Orientierung | gerade | |
| Polzahl | 40-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
