1-1419129-8 | OEG
Relay, 1 Form A (N/O), 12 V (DC), 320 Ω, 5 A, 30 V (DC), 277 V (AC), monostable, 1-1419129-8
Unit Price (€ / pc.)
0.8687 € *
Available: 0 pcs.
Available in 5 Days: 10,799 pcs.
Leadtime: 19 Weeks **
Total Price:
0.87 € *
Price list
Quantity
Price per unit*
100 pcs.
0.8687 €
500 pcs.
0.8568 €
*incl. VAT plus shipping costs
**Subject to prior sale

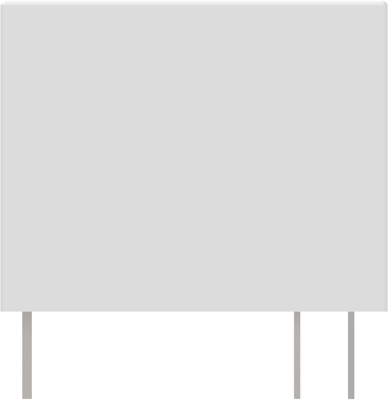

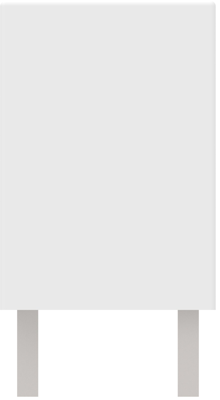

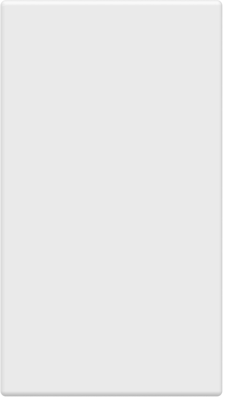

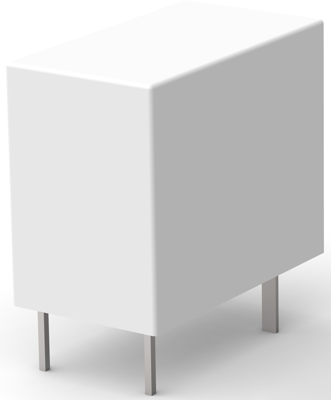

Miniature PCB relay, 1-1419129-8, OEG
Power relay, Standard, Monostable, DC, 450 mW Coil Power Rating DC, 320 Ω Coil Resistance, UL Coil Insulation Class.
Features
- Small size with outline dimension
- 4000V rms coil contact di-electric strength
Applications
- Major home appliance
- Small appliances
- HVAC
- Industrial Control
Technical specifications
| Connection | PCB pin | |
| Contact type | 1 Form A (N/O) | |
| Contact material | AgNi | |
| Switching Voltage (AC) | 277 V | |
| Switching Voltage (DC) | 30 V | |
| switching current | 5 A | |
| Coil voltage (DC) | 12 V | |
| Coil type | monostable | |
| Coil resistance | 320 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
