3-1461491-1 | OEG
Relay, 1 Form A (N/O), 6 V (DC), 300 Ω, 3 A, 125 V (DC), monostable, 3-1461491-1
Unit Price (€ / pc.)
3.9032 € *
Available: 0 pcs.
Available in 5 Days: 23,787 pcs.
Leadtime: 24 Weeks **
Total Price:
3.90 € *
Price list
Quantity
Price per unit*
25 pcs.
3.9032 €
150 pcs.
3.8199 €
*incl. VAT plus shipping costs
**Subject to prior sale

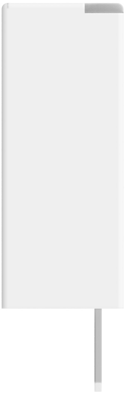

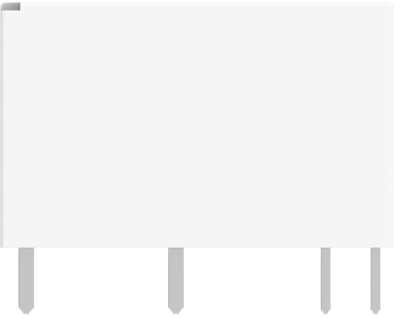

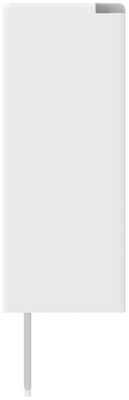

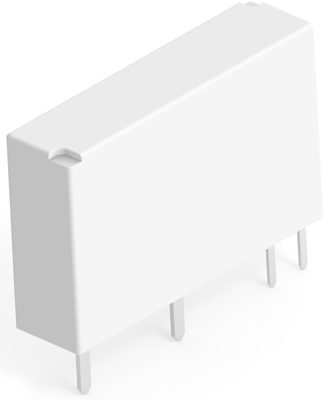

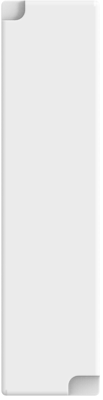

Slimline PCB relay, 3-1461491-1, OEG
Power relay, Standard, Monostable, DC, 0.01 VA Coil Power Rating AC, 120 mW Coil Power Rating DC, 300 Ω Coil Resistance.
Features
- Sensitive coil 120mW
- Cadmium-free contacts
- Z type with reinforced insulation
- RoHS compliant
Applications
- Temperature control
- I/O modules
Technical specifications
| Connection | PCB pin | |
| Contact type | 1 Form A (N/O) | |
| Contact material | AgNi + Au | |
| Switching Voltage (DC) | 125 V | |
| switching current | 3 A | |
| Coil voltage (DC) | 6 V | |
| Coil type | monostable | |
| Coil resistance | 300 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
