A9338117 | OKW
Battery compartment kit, 5 x AA, ABS, (L x W) 93 x 98 mm, white, for mignon cells, A9338117
Order No.: 30H1714
EAN: 4099889555714
MPN:
A9338117
Batteriefach-Set, 5 x AA
Unit Price (€ / pc.)
24.9781 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
24.98 € *
Price list
Quantity
Price per unit*
10 pcs.
24.9781 €
50 pcs.
23.4906 €
100 pcs.
22.5624 €
*incl. VAT plus shipping costs
**Subject to prior sale

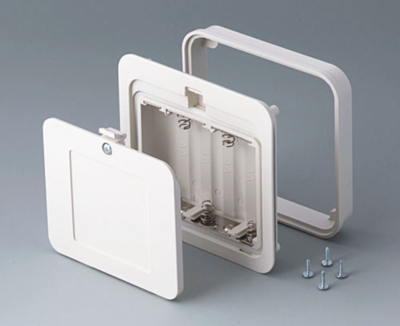

Battery compartment kit, A9338117, OKW
Battery compartment kit for direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting. Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Technical specifications
| Ausführung | 5 x AA | |
| Breite | 98 mm | |
| Farbe | weiß | |
| Geeignet für | Mignonzellen | |
| Länge | 93 mm | |
| Material | ABS | |
| Zubehörart | Batteriefach-Set |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
