A0612107 | OKW
ABS enclosure, (L x W x H) 150 x 120 x 62.8 mm, gray white, IP40, A0612107
Unit Price (€ / pc.)
30.9757 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
30.98 € *
Price list
Quantity
Price per unit*
1 pcs.
30.9757 €
10 pcs.
29.1074 €
50 pcs.
27.9531 €
*incl. VAT plus shipping costs
**Subject to prior sale
Housing, A0612107, OKW

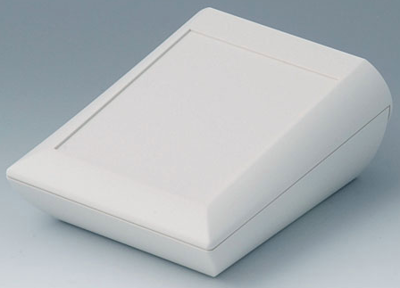

The A0612107 is a non-metallic housing made of ABS. The COMTEC 120 H enclosure has a low-profile design for desktop and wall mounting. Ergonomic 10° sloped operating surface, 0.047-inch recess to protect membrane keypads. It has mounting towers in the bottom and top sections and a large area for interfaces at the back of the top sections. This makes desktop units easy to operate and applications on the wall - then rotated 180° - optimal for the user to mount.
Features
- REACH compliant
- Ergonomic design and a real benefit when operating and reading
- Large area for interfaces on top, ideal for D-Sub connectors and circular connectors
- Simple mounting design with only two self-tapping screws
Technical specifications
| Breite | 120 mm | |
| Farbe | grauweiß | |
| Höhe | 62.8 mm | |
| Länge | 150 mm | |
| Material | ABS | |
| Schutzart (IP) | IP40 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
