A3116049 | OKW

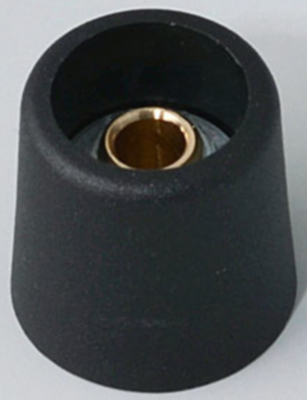

Rotary knob, 4 mm, plastic, black, Ø 16 mm, H 16 mm, A3116049
Order No.: 30H1146
EAN: 4099889346299
MPN:
A3116049
COM-KNOBS 16 geschl., nero, 4mm
Series: COM-KNOBS
Unit Price (€ / pc.)
3.5105 € *
Available: 8 pcs.
Leadtime: 1 Week **
Total Price:
3.51 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5105 €
10 pcs.
3.0821 €
100 pcs.
2.7013 €
250 pcs.
2.6061 €
1000 pcs.
2.4276 €
*incl. VAT plus shipping costs
**Subject to prior sale
Rotary knob, A3116049, OKW
The A3116049 rotary knob is suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.
Technical specifications
| Ausführung | Drehknopf | |
| Befestigungsart | Spannzangenbefestigung | |
| Durchmesser | 16 mm | |
| Farbe | schwarz | |
| Für Achsdurchmesser | 4 mm | |
| Höhe | 16 mm | |
| Markierung | No | |
| Material | Kunststoff |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 84879090 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
