A3131639 | OKW
Rotary knob, 6.35 mm, plastic, black, Ø 31 mm, H 16 mm, A3131639
Order No.: 30H1158
EAN: 4099889346411
MPN:
A3131639
COM-KNOBS 31 geschl., nero, 1/4 Zoll
Series: COM-KNOBS
Unit Price (€ / pc.)
5.0456 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.05 € *
Price list
Quantity
Price per unit*
10 pcs.
5.0456 €
50 pcs.
4.7481 €
100 pcs.
4.5577 €
500 pcs.
4.3792 €
*incl. VAT plus shipping costs
**Subject to prior sale

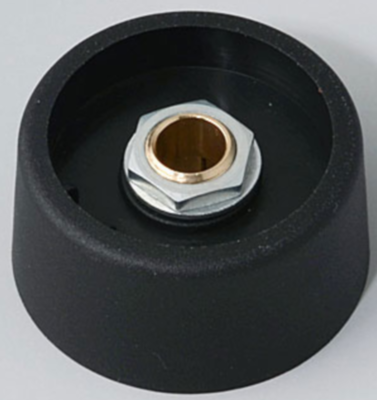

Rotary knob, A3131639, OKW
The A3131639 rotary knob is suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole = 1/4", without chamfer. Max. torque: assembly = 1.8 Nm, function = 1.6 Nm.
Technical specifications
| Ausführung | Drehknopf | |
| Befestigungsart | Spannzangenbefestigung | |
| Durchmesser | 31 mm | |
| Farbe | schwarz | |
| Für Achsdurchmesser | 6.35 mm | |
| Höhe | 16 mm | |
| Markierung | No | |
| Material | Kunststoff |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 84879090 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
