A3140068 | OKW
Rotary knob, 6 mm, plastic, gray, Ø 40 mm, H 16 mm, A3140068
Order No.: 30H1159
EAN: 4099889346428
MPN:
A3140068
COM-KNOBS 40 geschl., vulkan, 6mm
Series: COM-KNOBS
Unit Price (€ / pc.)
5.9024 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.90 € *
Price list
Quantity
Price per unit*
10 pcs.
5.9024 €
50 pcs.
5.5454 €
100 pcs.
5.3193 €
500 pcs.
5.1051 €
*incl. VAT plus shipping costs
**Subject to prior sale

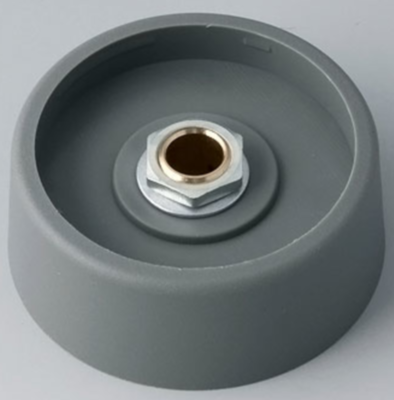

Rotary knob, A3140068, OKW
The A3140068 rotary knob is suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borhole without chamfer. Max. torque: assembly = 2.5 Nm, function = 1.6 Nm.
Technical specifications
| Ausführung | Drehknopf | |
| Befestigungsart | Spannzangenbefestigung | |
| Durchmesser | 40 mm | |
| Farbe | grau | |
| Für Achsdurchmesser | 6 mm | |
| Höhe | 16 mm | |
| Markierung | No | |
| Material | Kunststoff |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 84879090 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
