A3140069 | OKW

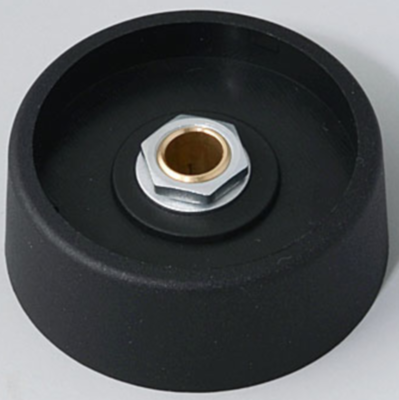

Rotary knob, 6 mm, plastic, black, Ø 40 mm, H 16 mm, A3140069
Order No.: 30H1160
EAN: 4099889346435
MPN:
A3140069
COM-KNOBS 40 geschl., nero, 6mm
Series: COM-KNOBS
Unit Price (€ / pc.)
5.0099 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.01 € *
Price list
Quantity
Price per unit*
10 pcs.
5.0099 €
100 pcs.
4.4030 €
250 pcs.
4.2364 €
1000 pcs.
3.9508 €
*incl. VAT plus shipping costs
**Subject to prior sale
Rotary knob, A3140069, OKW
The A3140069 rotary knob is suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Max. torque: assembly = 2.5 Nm, function = 1.6 Nm.
Technical specifications
| Version | rotary knob | |
| Type of mounting | collet mounting | |
| diameter | 40 mm | |
| Colour | black | |
| For shaft diameter | 6 mm | |
| Height | 16 mm | |
| Marking | No | |
| Material | plastic |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84879090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
