B6705806 | OKW
PC DIN rail enclosure, (L x W x H) 32 x 106.2 x 90 mm, light gray, B6705806
Order No.: 30H2489
EAN: 4099889549126
MPN:
B6705806
RAILTEC C, 6 Module, flach, Ausf. IV
Series: RAILTEC C
Unit Price (€ / pc.)
15.6961 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
15.70 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6961 €
10 pcs.
14.7441 €
50 pcs.
14.1610 €
*incl. VAT plus shipping costs
**Subject to prior sale

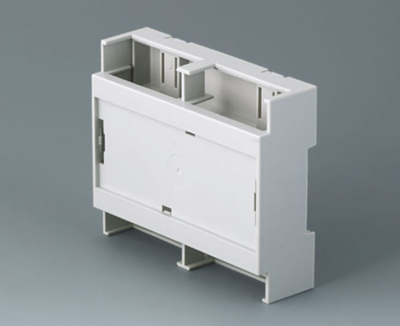

Enclosure with 2 sides open for connection and with flat top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Technical specifications
| Width | 106.2 mm | |
| Colour | light gray | |
| Height | 90 mm | |
| Length | 32 mm | |
| Material | PC |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
