A9005208 | OKW
ABS/PC enclosure, (L x W x H) 136 x 74 x 32 mm, lava, IP65, A9005208
Order No.: 30H1234
EAN: 4099889507966
MPN:
A9005208
DATEC-COMPACT S, IP65, mit Batteriefach
Series: DATEC-COMPACT
Unit Price (€ / pc.)
42.7329 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
42.73 € *
Price list
Quantity
Price per unit*
1 pcs.
42.7329 €
10 pcs.
40.1625 €
50 pcs.
38.5560 €
*incl. VAT plus shipping costs
**Subject to prior sale

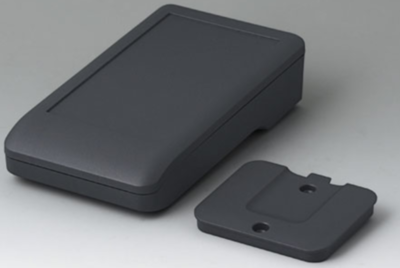

Hand housing, A9005208, OKW
3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AAA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Technical specifications
| Width | 74 mm | |
| Colour | lava | |
| Height | 32 mm | |
| Length | 136 mm | |
| Material | ABS/PC | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
