A9075107 | OKW
ABS enclosure, (L x W x H) 252 x 121 x 50 mm, gray white (RAL 9002), IP65, A9075107
Order No.: 50H560
EAN: 4099889515770
MPN:
A9075107
DATEC-MOBIL-BOX L, Ausf. I
Series: DATEC-MOBIL-BOX
Unit Price (€ / pc.)
52.3719 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
52.37 € *
Price list
Quantity
Price per unit*
1 pcs.
52.3719 €
10 pcs.
49.2303 €
50 pcs.
47.2549 €
*incl. VAT plus shipping costs
**Subject to prior sale

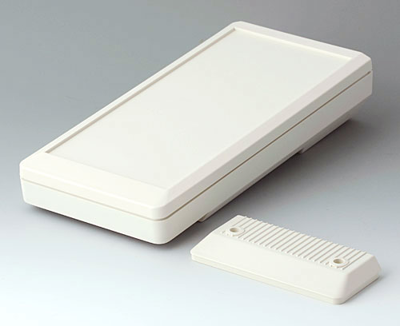

ABS enclosure, A9075107, OKW
Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3).
Technical specifications
| Width | 121 mm | |
| Colour | gray white | |
| Height | 50 mm | |
| Length | 252 mm | |
| Material | ABS | |
| RAL number | 9002 | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
