A9486107 | OKW
ASA+PC-FR enclosure, (L x W x H) 250 x 155 x 54 mm, gray white (RAL 9002), IP40, A9486107
Unit Price (€ / pc.)
30.9162 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
30.92 € *
Price list
Quantity
Price per unit*
1 pcs.
30.9162 €
10 pcs.
29.0598 €
50 pcs.
27.9055 €
*incl. VAT plus shipping costs
**Subject to prior sale
Enclosure, A9486107, OKW

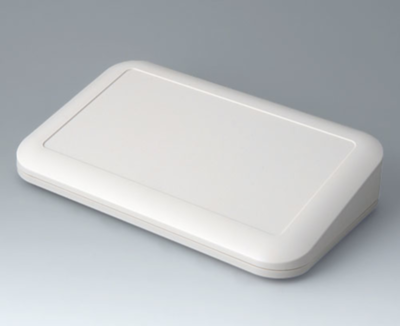

2-part enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.
Technical specifications
| Width | 155 mm | |
| Colour | gray white | |
| Height | 54 mm | |
| Length | 250 mm | |
| Material | ASA+PC-FR | |
| RAL number | 9002 | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
