B1604207 | OKW
ASA enclosure, (L x W x H) 50 x 41 x 16 mm, white (RAL 9016), IP65, B1604207
Unit Price (€ / pc.)
14.9464 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
14.95 € *
Price list
Quantity
Price per unit*
1 pcs.
14.9464 €
10 pcs.
14.0658 €
50 pcs.
13.4946 €
*incl. VAT plus shipping costs
**Subject to prior sale
Body case, B1604207, OKW

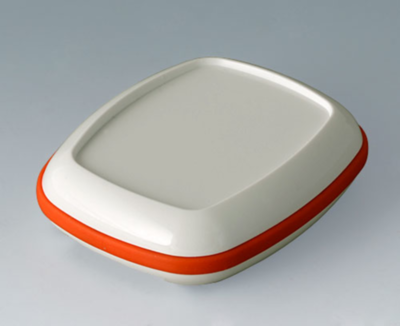

Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring. Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively. Wrist strap, fastening kit, lanyard etc. as accessories.
Technical specifications
| Width | 41 mm | |
| Colour | white | |
| Height | 16 mm | |
| Length | 50 mm | |
| Material | ASA | |
| RAL number | 9016 | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
