C2162401 | OKW
ABS enclosure shell, (L x W x H) 240 x 160 x 60 mm, light gray (RAL 7035), C2162401
Order No.: 30H2878
EAN: 4099889513721
MPN:
C2162401
Gehäuseschale 160x240x60, mit F., ABS
Series: ROBUST-BOX
Unit Price (€ / pc.)
32.1776 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
32.18 € *
Price list
Quantity
Price per unit*
1 pcs.
32.1776 €
10 pcs.
30.2379 €
50 pcs.
29.0241 €
*incl. VAT plus shipping costs
**Subject to prior sale

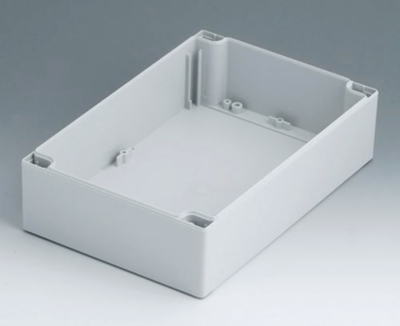

Case shell, C2162401, OKW
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of min. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Technical specifications
| Width | 160 mm | |
| Colour | lichtgrau | |
| Height | 60 mm | |
| Length | 240 mm | |
| Material | ABS | |
| RAL number | 7035 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
