C5203001 | OKW
ABS enclosure shell, (L x W x H) 300 x 200 x 80 mm, light gray (RAL 7035), C5203001
Order No.: 30H2936
EAN: 4099889513868
MPN:
C5203001
Gehäuseschale 200x300x80, mit D., ABS
Series: ROBUST-BOX
Unit Price (€ / pc.)
67.7229 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
67.72 € *
Price list
Quantity
Price per unit*
1 pcs.
67.7229 €
10 pcs.
63.6650 €
50 pcs.
61.1184 €
*incl. VAT plus shipping costs
**Subject to prior sale

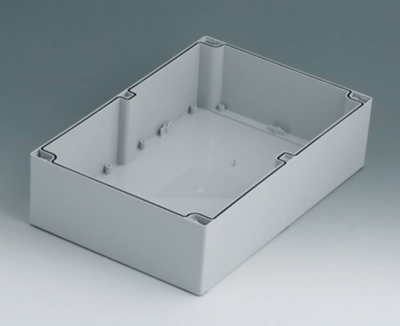

Case shell, C5203001, OKW
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of min. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Technical specifications
| Breite | 200 mm | |
| Farbe | lichtgrau | |
| Höhe | 80 mm | |
| Länge | 300 mm | |
| Material | ABS | |
| RAL-Farbnummer | 7035 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
