PC20BU 6MM F1 4K7 LIN | Omeg
Conductive plastic potentiometer, 4.7 kΩ, 0.4 W, linear, solder pin, PC20BU 6MM F1 4K7 LIN
Order No.: 75E748
EAN: 4099879973931
MPN:
PC20BU 6MM F1 4K7 LIN
Unit Price (€ / pc.)
4.5101 € *
Available: 128 pcs.
Next delivery: 50 pcs. on 2025-03-10
Leadtime: 3 Weeks **
Total Price:
4.51 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5101 €
10 pcs.
3.2249 €
100 pcs.
2.7608 €
500 pcs.
2.3919 €
1000 pcs.
2.1777 €
*incl. VAT plus shipping costs
**Subject to prior sale

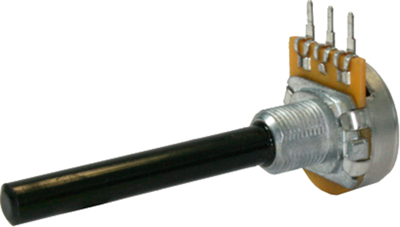

Conductive plastic potentiometer, type Omeg PC20BU F1.

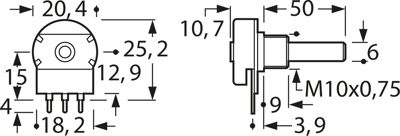

6.0 mm plastic shaft. Linear, for PCB mounting; Shaft length: 50 mm. Load rating: 0.4 W (at +40 °C). Operating temperatures: –25 to +70 °C. Tolerance: ±20 %. Adjustment range: 300° (effective 267°). Linearity: ±4.0 %. Insulation voltage: 1000 VAC. Useful life: 20.000 cycles. Bushing mount: M 10 x 0.75 mm.
Type: 4K7
Technical specifications
| ohmscher Widerstand | 4.7 kΩ | |
| Anschluss | Lötstift | |
| Ausführung | Leitplastik Potentiometer | |
| Breite | 10.7 mm | |
| Drehbereich (mechanisch) | 300 ° | |
| Durchmesser der Achse | 6 mm | |
| Länge | 20.4 mm | |
| Leistung | 0.4 W | |
| max. Temperatur | 70 °C | |
| min. Temperatur | -25 °C | |
| Montage | gewinkelt | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | GB |
| Zolltarifnummer | 85334010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 6/8/11 |
| SVHC frei | Yes |
