G5V-1 24VDC | Omron
Relay, 1 Form C (NO/NC), 24 V (DC), 3.84 kΩ, 1 A, 60 V (DC), 125 V (AC), monostable, G5V-1 24VDC
Unit Price (€ / pc.)
2.3205 € *
Available: 8,335 pcs.
Leadtime: On Request **
Total Price:
2.32 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3205 €
25 pcs.
1.9754 €
100 pcs.
1.8326 €
250 pcs.
1.7255 €
1000 pcs.
1.5827 €
*incl. VAT plus shipping costs
**Subject to prior sale

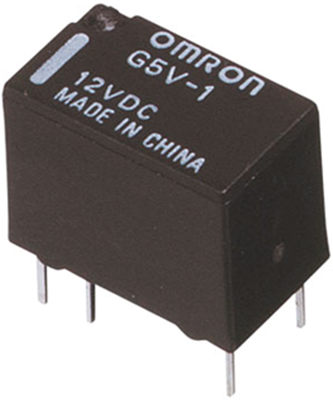

Miniature signal relay, type Omron G5V-1.

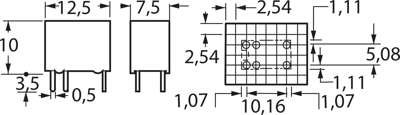

Highly sensitive and sealed; Grid: 2.54 mm. Contact type: 1 CO. Contact material: silver, gold alloy. Switching voltage: max. 125 VAC/60 VDC. Switching current: max. 1.0 A. Breaking capacity: max. 62.5 VA/30 W. Contact resistance: max. 100 mohm. Coil power: 150 mW. Coil/contact dielectric strength: 1000 VAC (60 s). Response/release time: max. 5.0/5.0 ms. Ambient temperatures: –40 to +70 °C. Certifications: UL, CSA.
Technical attributes (type, rated voltage, coil resistance (±10 %)): G5V-1 24VDC, 24 VDC, 3840 ohm
Technical specifications
| Connection | PCB connection | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | Ag | |
| Switching Voltage (AC) | 125 V | |
| Switching Voltage (DC) | 60 V | |
| switching current | 1 A | |
| Coil voltage (DC) | 24 V | |
| Coil type | monostable | |
| Coil resistance | 3.84 kΩ |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
