G5V-2 5VDC | Omron
Relay, 2 Form C (NO/NC), 5 V (DC), 50 Ω, 2 A, 125 V (DC), 125 V (AC), monostable, G5V-2 5VDC
Unit Price (€ / pc.)
2.6537 € *
Available: 637 pcs.
Leadtime: On Request **
Total Price:
2.65 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6537 €
25 pcs.
2.2610 €
100 pcs.
2.0944 €
250 pcs.
1.9873 €
1000 pcs.
1.8207 €
*incl. VAT plus shipping costs
**Subject to prior sale

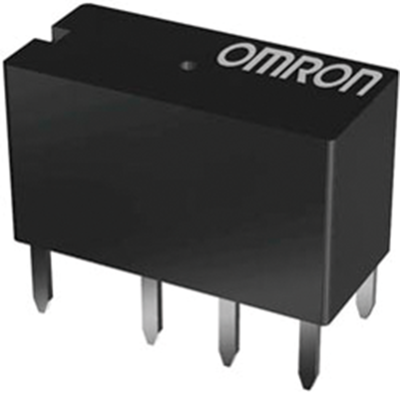

Signal relay, type Omron G5V-2.
Sealed, with twin contacts, monostable; Contact type: 2 x CO. Contact material: silver, Au alloy. Switching voltage: max. 125 V AC/DC. Dielectric strength coil/contact: 1000 VAC (60 s). Response/release time: max. 7.0/3.0 ms. Ambient temperatures: –25 to +65 °C. Certifications: UL, CSA.
With standard coil, type G5V-2-.
Coil power: 500 mW. Switching current: 2.0 A. Breaking capacity: max. 62.5 VA/60 W. Contact resistance: max. 50 mohm.
Technical attributes (type, rated voltage, coil resistance (±10 %)): G5V-2 5VDC, 5.0 VDC, 50 ohm
Technical specifications
| Connection | PCB connection | |
| Contact type | 2 Form C (NO/NC) | |
| Contact material | Ag | |
| Switching Voltage (AC) | 125 V | |
| Switching Voltage (DC) | 125 V | |
| switching current | 2 A | |
| Coil voltage (DC) | 5 V | |
| Coil type | monostable | |
| Coil resistance | 50 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
