G6B-2214P-US 12VDC | Omron
Relay, 2 Form A (N/O), 12 V (DC), 480 Ω, 5 A, 125 V (DC), 380 V (AC), monostable, G6B-2214P-US 12VDC
Unit Price (€ / pc.)
4.3435 € *
Available: 405 pcs.
Leadtime: 3 Weeks **
Total Price:
4.34 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3435 €
10 pcs.
3.8199 €
100 pcs.
3.3558 €
250 pcs.
3.2249 €
1000 pcs.
3.0226 €
*incl. VAT plus shipping costs
**Subject to prior sale

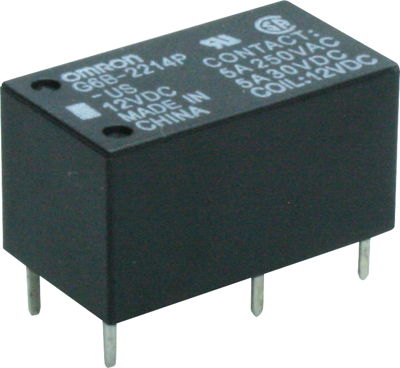

Subminiature Power relay, type Omron G6B.
Sealed, cadmium-free, monostable; Contact material: silver alloy. Rated load: 5.0 A/250 VAC, 5.0 A/30 VDC. Switching voltage: max. 380 VAC/125 VDC. Switching current: max. 5.0 A. Breaking capacity: max. 1250 VA/150 W. Rated coil power: approx. 200 mW (1 x NO), 300 mW (1 NO + 1 NC, 2 x NO). Contact resistance: max. 30 mohm. Dielectric strength coil/contact: 3000 VAC (60 s). Response/release time: max. 10/10 ms. Ambient temperatures: –25 to +70 °C. Certifications: TÜV, SEV, UL, CSA.
With 2 x NO contacts.
Technical attributes (type, rated coil voltage, coil resistance (±10 %)): G6B-2214-P-US 12VDC, 12 VDC, 480 ohm
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Kontaktart | 2 Schließer | |
| Kontaktmaterial | Ag-Legierung | |
| Schaltspannung (AC) | 380 V | |
| Schaltspannung (DC) | 125 V | |
| Schaltstrom | 5 A | |
| Spulenspannung (DC) | 12 V | |
| Spulentyp | monostabil | |
| Spulenwiderstand | 480 Ω |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 6/8/11 |
| SVHC frei | Yes |
