G6D-1A-ASI 24VDC | Omron
Relay, 1 Form A (N/O), 24 V (DC), 2.88 kΩ, 5 A, 30 V (DC), 250 V (AC), G6D-1A-ASI 24VDC
Unit Price (€ / pc.)
2.3086 € *
Available: 2,193 pcs.
Leadtime: On Request **
Total Price:
2.31 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3086 €
25 pcs.
1.9635 €
100 pcs.
1.8207 €
250 pcs.
1.7136 €
1000 pcs.
1.5708 €
*incl. VAT plus shipping costs
**Subject to prior sale

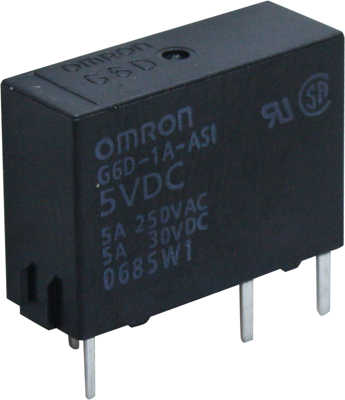

Power relay, type Omron G6D.

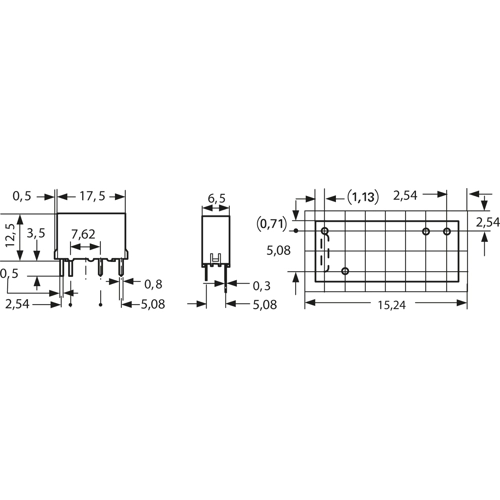

Cadmium-free and wash-proof; Grid: 2.54 mm to EN 61810-1. Contact assembly: 1 NO contact. Contact material: AgSnIn. Contact resistance: max. 100 mohm. Power consumption: 200 mW. Switching voltage: 30 VDC, 250 VAC. Switching current: max. 5.0 A. Static surge voltage contact-coil: 6000 V. Breaking capacity: 150 W/1250 VA. Response/release time: max. 10/5.0 ms. Ambient temperatures: –25 to +70 °C. Certifications: UL, CSA, TÜV.
Technical attributes (type, rated voltage, coil resistance (±10%)): G6D-1A-ASI 24VDC, 24 VDC, 2880 ohm
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Kontaktart | 1 Schließer | |
| Kontaktmaterial | AgSnIn | |
| Schaltspannung (AC) | 250 V | |
| Schaltspannung (DC) | 30 V | |
| Schaltstrom | 5 A | |
| Spulenspannung (DC) | 24 V | |
| Spulenwiderstand | 2.88 kΩ |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
