G6S-2 24VDC | Omron
Relay, 2 Form C (NO/NC), 24 V (DC), 2.88 kΩ, 2 A, 220 V (DC), 250 V (AC), monostable, G6S-2 24VDC
Unit Price (€ / pc.)
3.6057 € *
Available: 1,939 pcs.
Leadtime: On Request **
Total Price:
3.61 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6057 €
25 pcs.
3.0702 €
100 pcs.
2.8322 €
250 pcs.
2.6894 €
1000 pcs.
2.4633 €
*incl. VAT plus shipping costs
**Subject to prior sale

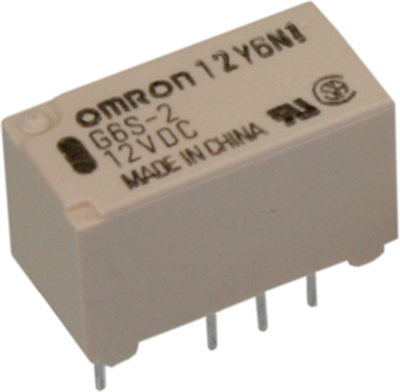

Miniature signal relay, type Omron G6S.
Sealed, monostable, 2.0 kV surge voltage strength coil/contacts; Contact type: 2 x CO. Contact material: silver, gold alloy. Rated load (resistance load): 0.5 A/125 VAC, 2.0 A/30 VDC. Switching voltage: max. 250 VAC/220 VDC. Switching current: max. 2.0 A. Breaking capacity: max. 62.5 W/60 W. Contact resistance: max. 75 mohm. Dielectric strength coil/contacts: 2000 VAC (60 s). Response/release time: max. 4.0/4.0 ms. Ambient temperatures: –40 to +85 °C. Certifications: UL, CSA.

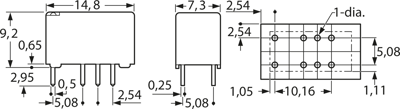

With PCB connections, type G6S-2.
Technical attributes (type, rated coil voltage, coil resistance (±10 %), rated coil power): G6S-2 24VDC, 24 VDC, 2880 ohm, 200 mW
Technical specifications
| Connection | PCB connection | |
| Contact type | 2 Form C (NO/NC) | |
| Contact material | Ag | |
| Switching Voltage (AC) | 250 V | |
| Switching Voltage (DC) | 220 V | |
| switching current | 2 A | |
| Coil voltage (DC) | 24 V | |
| Coil type | monostable | |
| Coil resistance | 2.88 kΩ |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
