Snap acting switche, On-On, screw connection, roll pin plunger, 9.81 N, 2 A/125 VAC, 48 VDC, IP67, SHL-Q2255
Sealed industrial snap-action switches, type Omron SHL.
In robust zinc die-cast case (48 x 17.5 x 45 mm); Degree of protection (EN60947-5-1): IP 67. Contact arrangement: 1 x changeover. Breaking capacity: 10 A/250 VAC, 10 A/125 VAC, 2.0 A/480 VAC, 5.0 A/30 VDC, 0.2 A/250 VDC. Inrush current: max. 15 A. Contact resistance (initial): max. 15 mohm. Insulation resistance: min. 100 Mohm (at 500 VDC). Insulation test voltage (for 1.0 minutes between terminals of the same polarity): 1000 VAC, 50/60 Hz. Operating temperatures: –10 to +80 °C. Mechanical/electrical rate of actuation: 120/30 switching cycles/minute. Certifications: TÜV, UL, CSA. Mounting: screw or bushing mount, depending on the type. Cable exit: via rubber grommet.

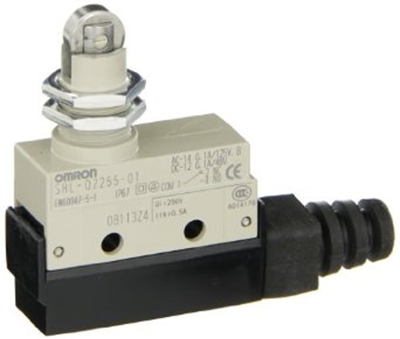

With built-in roller plunger, type SHL-Q2255.
Roll made of rust-proof alloy, M14 x 1 bushing thread; Actuating force: max. 9.81 N. OP: 43 ±0.8 mm.
Type: SHL-Q2255, industrial snap-action switch
| Anschluss | Schraubanschluss | |
| Bauform | abgewinkelt | |
| Betätiger | Rundzapfenstößel | |
| Betätigungskraft | 9,81 N | |
| Schaltfunktion | Ein-Ein | |
| Schaltleistung | 2 A/125 VAC, 48 VDC | |
| Schaltpunkt | 43 mm ±0,8 mm | |
| Schutzart (Betätigungsseite) | IP67 |
| Ursprungsland | JP |
| Zolltarifnummer | 85365015 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
