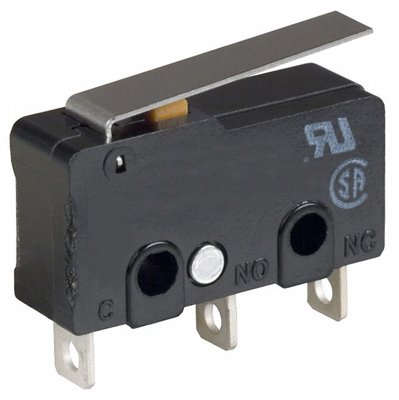

SS-10GL | Omron
Subminiature snap-action switch, On-On, solder connection, hinge lever, 0.49 N, 10.1 A/250 VAC, IP40, SS-10GL
Subminiature snap-action switches, type Omron SS.
Easy installation thanks to limiting of backlash from the housing, wide switching current range and (depending on the type) terminals for soldering or PCB mounting; Contact assembly: 1x changeover. Dielectric strength between live parts and ground: 1500 VAC (60 s). Mechanical switching rate: max. 400 cycles/minute. Ambient temperatures: –25 to +85 °C. Certifications: all types to UL and CSA, type SS-5 to VDE.
High-performance version with solder terminals, type SS-10.
Breaking capacity: 10.1 A/250 VAC. Contact version: rivet contacts. Contact material: silver alloy.
Technical attributes (type, version, actuating force, max. contact resistance (in new state)): SS-10GL, with flat lever, 0.49 N, 50 mohm
| Anschluss | Lötanschluss | |
| Bauform | gerade | |
| Betätiger | Scharnierhebel | |
| Betätigungskraft | 0,49 N | |
| Schaltfunktion | Ein-Ein | |
| Schaltleistung | 10,1 A/250 VAC | |
| Schaltpunkt | 8,8 mm ±0,8 mm | |
| Schutzart (Betätigungsseite) | IP40 |
| Ursprungsland | JP |
| Zolltarifnummer | 85365019 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
