SS-5 | Omron

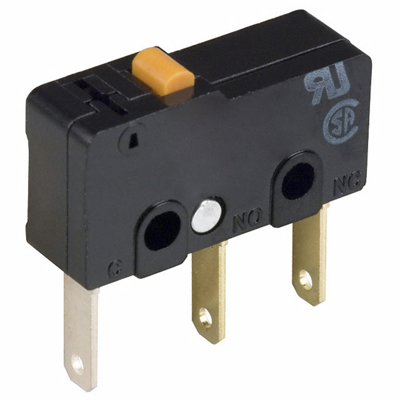

Subminiature snap-action switch, On-On, solder connection, pin plunger, 1.47 N, 5 A/125 VAC, 3 A/250 VAC, IP40, SS-5
Unit Price (€ / pc.)
0.9520 € *
Available: 609 pcs.
Next delivery: 500 pcs. on 2025-01-16
Leadtime: On Request **
Total Price:
9.52 € *
Price list
Quantity
Price per unit*
10 pcs.
0.9520 €
50 pcs.
0.8449 €
250 pcs.
0.7259 €
1000 pcs.
0.6307 €
*incl. VAT plus shipping costs
**Subject to prior sale
Subminiature snap-action switches, type Omron SS.
Easy installation thanks to limiting of backlash from the housing, wide switching current range and (depending on the type) terminals for soldering or PCB mounting; Contact assembly: 1x changeover. Dielectric strength between live parts and ground: 1500 VAC (60 s). Mechanical switching rate: max. 400 cycles/minute. Ambient temperatures: –25 to +85 °C. Certifications: all types to UL and CSA, type SS-5 to VDE.
Standard version with solder terminals, type SS-5.
Breaking capacity: 5.0 A/125 VAC, 3.0 A/250 VAC. Contact version: rivet contacts. Contact material: silver.
Technical attributes (type, version, actuating force, max. contact resistance (in new state)): SS-5, with plunger, 1.47 N, 30 mohm
Technical specifications
| Connection | solder connection | |
| Design | straight | |
| Actuator | pin plunger | |
| actuating force | 1.47 N | |
| Latching switching function | On-On | |
| Breaking capacity | 5 A/125 VAC, 3 A/250 VAC | |
| Switching point | 8.4 mm ±0.5 mm | |
| Protection class | IP40 |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85365015 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
