BD137G | onsemi

Bipolar junction transistor, NPN, 1.5 A, 60 V, THT, TO-225AA, BD137G

Order No.: 15S9921
EAN: 4099879028778
MPN:
BD137G
Series: BD
onsemi

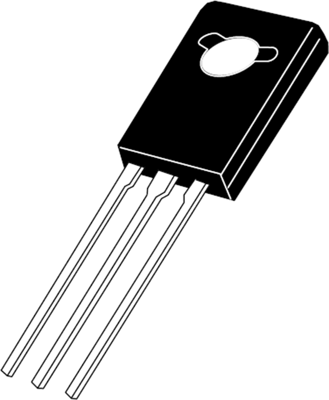

BD137G onsemi Bipolar Transistors
Image may differ
Print
Key Specification:
Assembly THT
Enclosure TO-225AA
Version NPN
Saturation voltage 500 mV
Collector current 1.5 A
Show 6 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.4522 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
0.45 € *
*incl. VAT plus shipping costs
**Subject to prior sale
3000 pcs.
0.4522 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

NPN transistor, BD137G, onsemi

This NPN power bipolar junction transistor is designed for use as audio amplifiers and drivers utilizing complementary or quasi complementary circuits.

Features

  • Halogen free
  • RoHS Compliant
Technical specifications
Version NPN
Enclosure TO-225AA
max. operating temperature 150 °C
max.voltage between collector and base Vcbo 60 V
max.voltage between collector and emitter Vceo 60 V
min. operating temperature -55 °C
Assembly THT
Saturation voltage 500 mV
Power dissipation 12.5 W
Collector current 1.5 A
Max DC amplification 250 mA
Min DC gain 40 mA
Show similar products 0
Logistics
Customs tariff number 85412900
Original Packaging Bulk with 500 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 6/8/11
SVHC free Yes
