BD138G | onsemi

Bipolar junction transistor, PNP, 1.5 A, 60 V, THT, TO-225AA, BD138G

Order No.: 15S9909
EAN: 4099879028730
MPN:
BD138G
Series: BD
onsemi

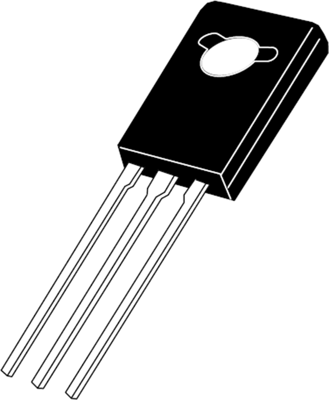

BD138G onsemi Bipolar Transistors
Image may differ
Print
Key Specification:
Assembly THT
Enclosure TO-225AA
Version PNP
Saturation voltage 500 mV
Collector current 1.5 A
Show 6 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.4522 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Add to Cart
Total Price:
0.45 € *
*incl. VAT plus shipping costs
**Subject to prior sale
3000 pcs.
0.4522 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

PNP transistor, BD138G, onsemi

This plastic medium-power silicon PNP transistor is designed for use as audio amplifiers and drivers utilizing complementary or quasi complementary circuits.

Features

  • Halogen free
  • RoHS Compliant
Technical specifications
Version PNP
Enclosure TO-225AA
max. operating temperature 150 °C
max.voltage between collector and base Vcbo 60 V
max.voltage between collector and emitter Vceo 60 V
min. operating temperature -55 °C
Assembly THT
Saturation voltage 500 mV
Power dissipation 12.5 W
Collector current 1.5 A
Max DC amplification 250 mA
Min DC gain 40 mA
Show similar products 0
Logistics
Country of origin CN
Customs tariff number 85412900
Original Packaging Carton with 500 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 6/8/11
SVHC free Yes
