BD675A | onsemi

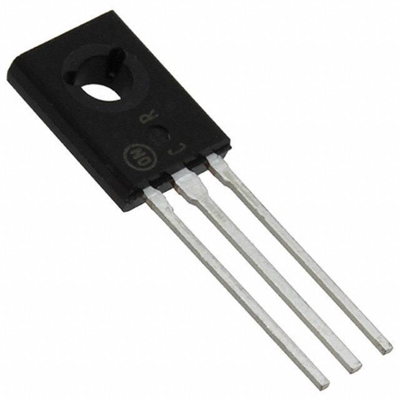

Bipolar junction transistor, NPN, 4 A, 45 V, THT, TO-225AA, BD675A
No longer available from manufacturer
Unit Price (€ / pc.)
0.2142 € *
Available: 21 pcs.
Leadtime: On Request **
NPN transistor, BD675A, onsemi
This medium power NPN darlington bipolar transistor is for use as output devices in complementary general-purpose amplifier applications.
Features
- High DC current gain
- RoHS Compliant
Technical specifications
| Version | NPN | |
| Enclosure | TO-225AA | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | 45 V | |
| max.voltage between collector and emitter Vceo | 45 V | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Rated current | 4 A | |
| Saturation voltage | 2.8 V | |
| Transit frequency fTmin | 1 MHz | |
| Power dissipation | 40 W | |
| Collector current | 4 A |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85412900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
