BD787G | onsemi

Bipolar junction transistor, NPN, 4 A, 60 V, THT, TO-225AA, BD787G

Order No.: 15S9912
EAN: 4099879028754
MPN:
BD787G
Series: BD
onsemi
BD787G onsemi Bipolar Transistors

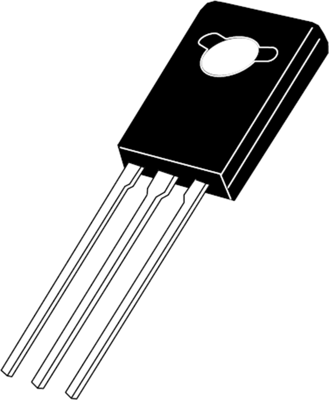

Image may differ
Print
Key Specification:
Assembly THT
Enclosure TO-225AA
Version NPN
Saturation voltage 2.5 V
Collector current 4 A
Show 6 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.4284 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
0.43 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2500 pcs.
0.4284 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

NPN transistor, BD787G, onsemi

This PNP bipolar power transistor is designed for lower power audio amplifier and low current, high speed switching applications.

Features

  • Low collector-emitter saturation voltage
  • High current gain bandwidth product
  • RoHS Compliant
Technical specifications
Version NPN
Enclosure TO-225AA
max. operating temperature 150 °C
max.voltage between collector and base Vcbo 80 V
max.voltage between collector and emitter Vceo 60 V
min. operating temperature -65 °C
Assembly THT
Saturation voltage 2.5 V
Transit frequency fTmin 50 MHz
Power dissipation 15 W
Collector current 4 A
Max DC amplification 250 mA
Min DC gain 40 mA
Show similar products 0
Logistics
Customs tariff number 85412900
Original Packaging Carton with 500 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
