NCP130AMX110TCG | onsemi

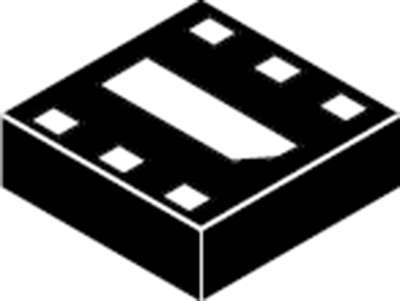

Voltage regulator, 1.1 VDC, 300 mA, positive, XFDFN-6, NCP130AMX110TCG
Unit Price (€ / pc.)
0.2463 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Voltage regulator, NCP130AMX110TCG, ONS
The NCP130AMX110TCG is a 300 mA VLDO equipped with NMOS pass transistor and a separate bias supply voltage (VBIAS). The device provides very stable, accurate output voltage with low noise suitable for space constrained, noise sensitive applications. In order to optimize performance for battery operated portable applications, the device features low IQ consumption.
Features
- Ultra-low dropout: 150 mV maximum at 300 mA
- Very low bias input current of typ. 80 µA
- Logic level enable input for ON/OFF control
- Stable with a 1 µF ceramic capacitor
Applications
- Battery powered equipment
- Smartphones, tablets
- Cameras, DVRs, STB and camcorders
Technical specifications
| Anzahl der Regler | 1 | |
| Ausführung | fest | |
| Ausgangsspannungsbereich | 1,1 VDC | |
| Ausgangsstrom | 300 mA | |
| Eingangsspannungsbereich | 0,8-5,5 V | |
| Gehäuse | XFDFN-6 | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -40 °C | |
| Montage | SMD | |
| Polarität | positiv |
Download
Logistics
| Zolltarifnummer | 85423390 |
| Originalverpackung | Rolle mit 5.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 6/8/11 |
| SVHC frei | Yes |
