NCP133AMX115TCG | onsemi

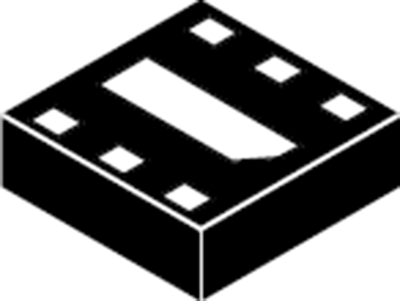

Voltage regulator, 1.15 VDC, 500 mA, positive, XFDFN-6, NCP133AMX115TCG
Unit Price (€ / pc.)
0.3451 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Voltage regulator, NCP133AMX115TCG, ONS
The NCP133AMX115TCG is a 500 mA VLDO equipped with NMOS pass transistor and a separate bias supply voltage (VBIAS). This device provides very stable, accurate output voltage with low noise suitable for space constrained, noise sensitive applications.
Features
- Ultra-low dropout: typ. 140 mV at 500 mA
- Very low bias input current of typ. 80 µA
- Logic level enable input for ON/OFF control
- Stable with a 2.2 µF ceramic capacitor
Applications
- Battery powered equipment
- Smartphones, tablets
- Cameras, DVRs, STB and camcorders
Technical specifications
| Anzahl der Regler | 1 | |
| Ausführung | fest | |
| Ausgangsspannungsbereich | 1,15 VDC | |
| Ausgangsstrom | 500 mA | |
| Eingangsspannungsbereich | 0,8-5,5 V | |
| Gehäuse | XFDFN-6 | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -40 °C | |
| Montage | SMD | |
| Polarität | positiv |
Download
Logistics
| Zolltarifnummer | 85423390 |
| Originalverpackung | Rolle mit 5.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 6/8/11 |
| SVHC frei | Yes |
