NCP161BMX280TBG | onsemi

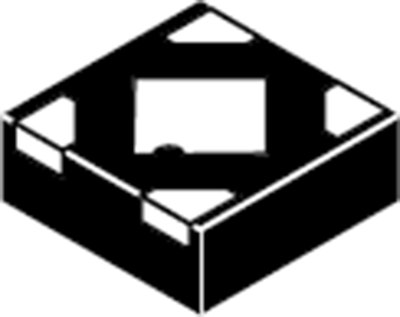

Voltage regulator, 2.8 VDC, 450 mA, positive, XDFN-4, NCP161BMX280TBG
Unit Price (€ / pc.)
0.1975 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
ULDO Regulator, NCP161BMX280TBG, ON Semiconductor
The NCP161 is a linear regulator capable of supplying 450 mA output current. Designed to meet the requirements of RF and analog circuits, the NCP161 device provides low noise, high PSRR, low quiescent current, and very good load/line transients. The device is designed to work with a 1 µF input and a 1 µF output ceramic capacitor. It is available in two thickness ultra−small 0.35P, 0.65 mm x 0.65 mm Chip Scale Package (CSP), XDFN−4 0.65P, 1 mm x 1 mm and TSOP5 packages.
FEATURES
- Ultra High PSRR 98 dB at 1 kHz, 48 dB at 100 kHz
- Ultra Low Output Noise 10 µVRMS
- Ultra Low Quiescent current 18 µA
- Operating Input Voltage Range 1.9 V to 5.5 V
Technical Data
- Temperature: -40°C to 125°C
- Output current: 0.45 A
- Output voltage range: 2.8 VDC
Technical specifications
| Assembly | SMD | |
| Enclosure | XDFN-4 | |
| Version | fest | |
| Number of Regulators | 1 | |
| Input voltage AC | 1,9-5,5 V | |
| Output voltage DC | 2,8 VDC | |
| Output current | 450 mA | |
| Polarity | positiv | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Customs tariff number | 85423390 |
| Original Packaging | Rolle mit 5.000 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
